JTX GS-01 Green Oil Net Film UV Solder Mask Repair for iPhone

JTX GS-01 – UV Solder Mask Repair Stencils
The JTX GS-01 is a professional set of stencils (Green Oil Net) designed for quick and precise repair of damaged solder masks on BGA chips. It is an essential tool for technicians performing advanced reballing of processors and memory chips in modern smartphones.
Why is the JTX GS-01 a “must-have” for your service center?
When disassembling chips (especially those that are soldered), the factory insulation between the pads often chips away. The JTX GS-01 allows you to apply a new protective layer (Green Oil) while perfectly avoiding the solder pads, which prevents solder balls from flowing together and causing short circuits.
Key benefits:

 Precise laser-cut openings: The holes are perfectly aligned with the pad grid of the most popular processors.
 Wide compatibility: Supports chipsets from iPhone, Samsung, Huawei (Hisilicon), Qualcomm, and MTK.
 Time-saving: Instead of manually applying the coating with a needle under a microscope, you can cover the entire chip in seconds.
 High durability: Stencils made from material resistant to heat and service chemicals.

Technical Specifications:

 Model: JTX GS-01
 Application: Solder mask restoration (UV Green Oil)

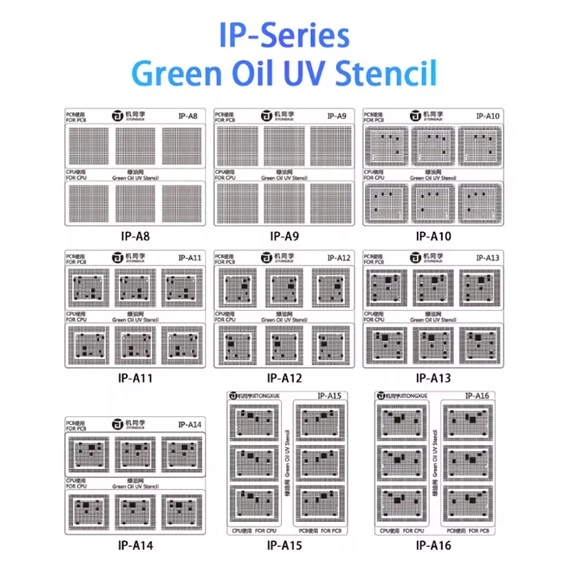

 Supported platforms: iPhone (A series), Qualcomm (Snapdragon), Hisilicon (Kirin), MTK (Dimensity), Samsung (Exynos)
 Material: UV- and heat-resistant plastic

Instructions for use:

 Clean the circuit board: Remove any residue from the old mask and flux using IPA.
 Apply the paint: Apply a thin layer of UV paint to the damaged area.
 Align the stencil: Place the appropriate JTX stencil over the circuit board, aligning the holes with the pads.
 Cure: Cure with a UV lamp for approx. 5–10 seconds.
 Clean: Remove the stencil and rinse the board. Done!
