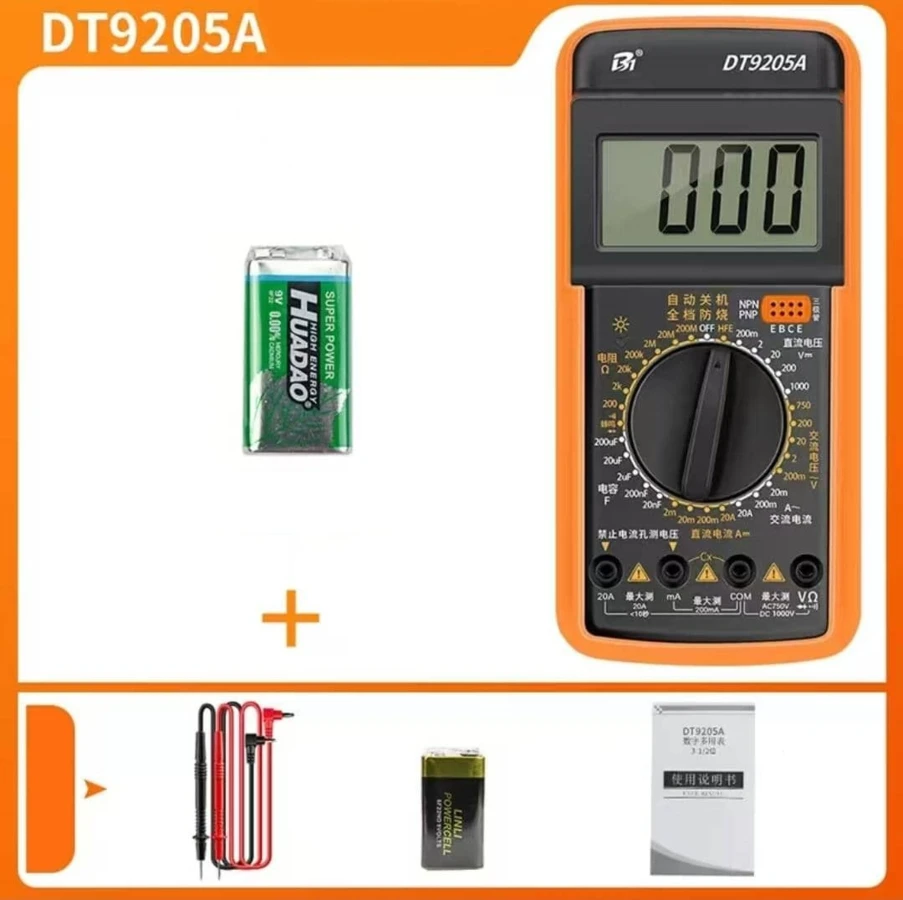

Digital Multimeter DT9205A

The DT9205A digital multimeter is a popular, versatile measuring device. It is a basic model, often recommended for novice electronics engineers and for home use due to its functionality and low price.

Main Features and Specifications

• Display: Large, 3.5-digit LCD display.

• Function selection: Convenient rotary switch for functions and ranges.

• Voltage measurement: Direct current (DC) and alternating current (AC).

• Current measurement: Direct current (DC) and alternating current (AC).

•  Resistance measurement: Wide resistance measurement range.

• Capacitance measurement: Ability to measure capacitor capacitance.

•  Additional tests: Diode test, circuit continuity test (with acoustic signal - buzzer) and transistor hFE factor measurement.

•  Power supply: Typically powered by a 9V battery (type 6F22).

• Safety: Features a removable rubber cover to protect against mechanical damage.

Application

The DT9205A multimeter is designed for a wide range of amateur applications and basic workshop tasks, such as:

• Diagnosing simple faults in home electrical installations.

• Measuring batteries and accumulators.

• Checking the operation of electronic components (diodes, resistors, transistors, capacitors).

• Testing the continuity of wires and circuits.
